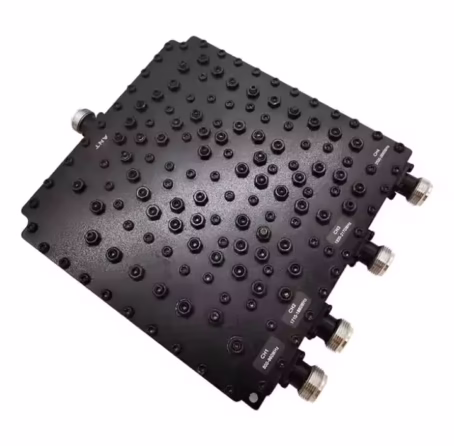

RF Combiner Duplexer Diplexer 800-2690MHz 4 Ports 200W N DIN 7/16 for Telecommunication Base Station IBS BTS DAS
$ 460
|
Frequency Range(MHz)
|
800-960/1710-1880/1920-2170/2500-2690
|
|
Insertion Loss(dB)
|
≤0.8/ ≤0.8/ ≤0.8/ ≤0.6
|
|
Ripple in band(dB)
|
≤0.6/ ≤0.6/ ≤0.6/ ≤0.5
|
|
Rejection/Isolation(dB)
|
≥80/ ≥80/ ≥80/ ≥80
|
|
VSWR
|
≤ 1.3
|
|
PIM3
|
≤-120dBC@2×43dBm; ≤-140dBC@2×43dBm
|
|
Impedance
|
50Ω
|
|
Input Power
|
200W
|
|
Connector Type
|
N-female or 7/16 DIN-female
|
|
Weight
|
1.5Kg
|
|
Relative Humidity
|
5%-95%
|
|
Application
|
Indoor or Outdoor
|
|
Working Temperature
|
-35°C to +75°C
|
Description
|
Frequency Range(MHz)
|
800-960/1710-1880/1920-2170/2500-2690
|
|
Insertion Loss(dB)
|
≤0.8/ ≤0.8/ ≤0.8/ ≤0.6
|
|
Ripple in band(dB)
|
≤0.6/ ≤0.6/ ≤0.6/ ≤0.5
|
|
Rejection/Isolation(dB)
|
≥80/ ≥80/ ≥80/ ≥80
|
|
VSWR
|
≤ 1.3
|
|
PIM3
|
≤-120dBC@2×43dBm; ≤-140dBC@2×43dBm
|
|
Impedance
|
50Ω
|
|
Input Power
|
200W
|
|
Connector Type
|
N-female or 7/16 DIN-female
|
|
Weight
|
1.5Kg
|
|
Relative Humidity
|
5%-95%
|
|
Application
|
Indoor or Outdoor
|
|
Working Temperature
|
-35°C to +75°C
|
